IP-RATED DIECAST ALUMINIUM ENCLOSURES FOR INDUSTRIAL ELECTRONICS
Smart, robust ROLEC aluminium enclosures for industrial electronics. All enclosures are IP rated. Some models are also NEMA 4 rated.
ROLEC sealed enclosures are designed to survive challenging indoor or outdoor industrial locations. They can be installed anywhere – on walls, machines and bulkheads.
Scroll down to view our wide range of standard enclosures. Advanced technical features differ between models. Look for benefits such as:
- IP 66, IP 67, IP 68, IP 69K and NEMA 4 ingress protection.
- ‘Lid closed’ installation – protecting the seal and electronics during fitting/removal.
- Tough integrated hinges or lid retaining straps stop the lid from being dropped – ideal for installations at height.
- Single channels for lid fixings and mounting screws – maximising interior space.
- Recessed lids for membrane keypads, front panels and product labels.
- Concealed lid fixings and mounting screws for superior aesthetics.
- Built-in EMC shielding – no expensive, fragile or fiddly EMC gaskets are needed.
All ROLEC standard aluminium enclosures can be supplied fully customised to your exact requirements. Services include CNC machining, engraving, powder coating, painting, printing of photo-quality legends, logos and graphics, EMC shielding, display windows, assembly of accessories and components.
View the range below and specify your preferred model…

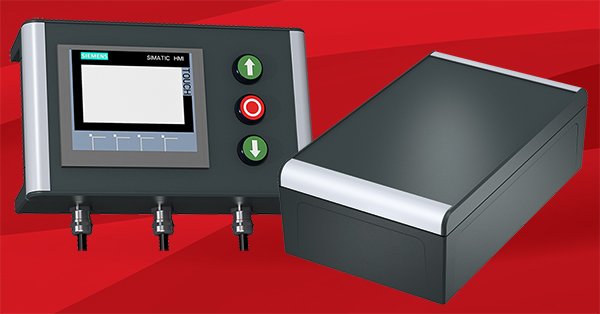

AWARD-WINNING NEW ALUDOOR HINGED-LID ENCLOSURES
We recently launched our advanced new aluDOOR – the next generation of hinged-lid aluminium housings for harsh outdoor and indoor industrial electronics. These elegant go-anywhere enclosures are rated from IP 66 to IP 69K. They can be mounted on walls, bulkheads, machines and desks.
Main features:
- Award-winning new premium enclosures with tough integrated lid hinges
- Lid with (or without) a recess for a membrane keypad, front panel or product label
- ‘Lid closed’ installation protects the seal and electronics
- IP 66, IP 67, IP 68, IP 69K.

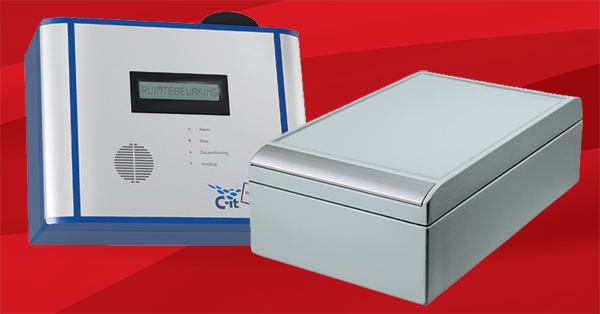

ALUCASE PREMIUM DIECAST ELECTRONIC ENCLOSURES
These highly attractive and versatile aluminium housings are available in an extensive range of sizes. They can be mounted to a wall or machine, or even handheld. The lid is recessed for a keypad. Snap-on trims hide all the fixings screws. Retaining straps keep the lid in place when open.
Main features:
- Recessed lid for a membrane keypad, front panel or product label
- Clip-on colour-coded covers hide the lid fixings and mounting screws
- ‘Lid closed’ installation for added protection and peace of mind
- IP 66, IP 67, IP 69K.

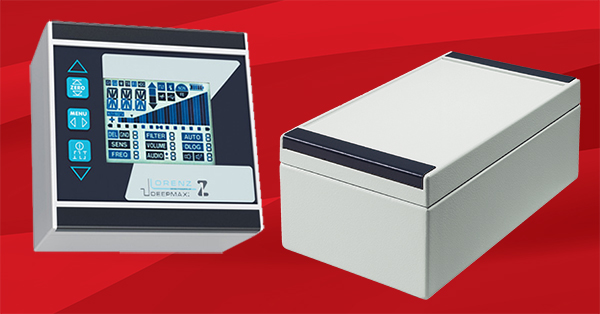

ALUPLUS INDUSTRY-STANDARD DIECAST ALUMINIUM ENCLOSURES
This versatile and highly attractive range of sealed diecast aluminium enclosures is designed for modern industrial electronics. The enclosures are available in industry-standard sizes. They can be mounted on a wall or machine, or used for portable instruments. Also available fully customised.
Main features:
- Available in a wide range of eight industry-standard sizes
- Recessed lid for a membrane keypad, front panel or product label
- 'Lid closed’ installation protects the electronics and seal
- IP 66, IP 67.

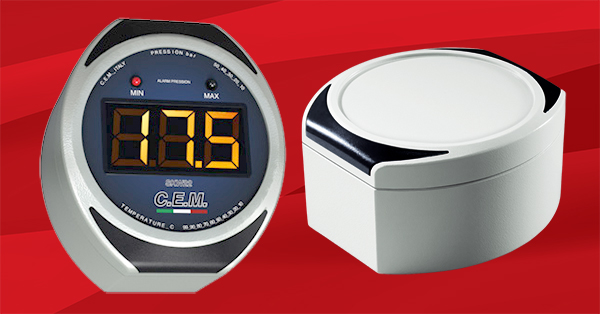

ALUDISC ‘ROUND’ ALUMINIUM ELECTRONIC ENCLOSURES
This unique range of 'round' diecast enclosures is designed for modern high-specification industrial equipment. They can be sealed up to IP 69K, and can be fitted to walls, bulkheads, machines – even when closed. An optional hinged clear cover is available for protecting controls and displays.
Main features:
- World’s first ‘round’ aluminium enclosures for industrial electronics
- Long sides are curved for enhanced aesthetics; short sides are flat for cable glands and connections
- Recessed main lid area for membrane keypad, front panel or product label
- High protection class – IP 66, IP 67 and on request IP 69K.

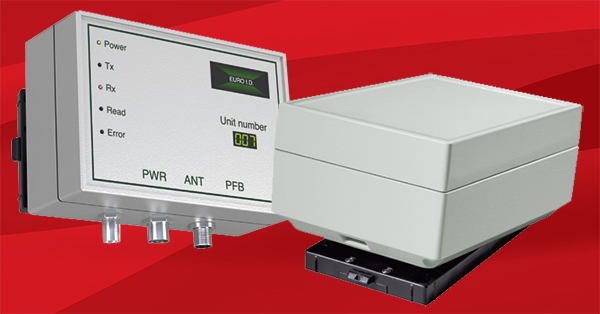

ALUCLIC FAST-FIT ALUMINIUM ELECTRONIC ENCLOSURES
These unique enclosures feature a snap-on mounting device that replaces traditional wall/machine mounting screws. With this mounting device, pre-assembled systems can be mounted in situ without the need to open the enclosure. Thus, the electronics can be installed and replaced with just a simple click.
Main features:
- World’s first quick-change diecast aluminium enclosures for rapid installation/removal
- Smart design creates extra capacity for components
- Virtually frameless lid with a large recessed area for a membrane keypad or product label
- IP 66, IP 67 and optionally IP 69K.

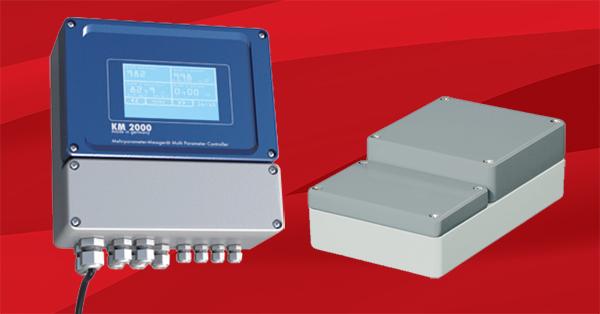

ALUTWIN DUAL-CHAMBER DIECAST ENCLOSURES
These dual-chamber enclosures allow the installation of PCBs, LCDs, power supplies and other active components in a separate compartment from the terminal connections. This means that sensitive components can be kept in a closed area during installation of the unit, or during regular servicing.
Main features:
- Two-chamber design with separate connection spaces
- Space-saving single channel for lid fixings and mounting screws
- Optional recessed anodised front plate for controls
- IP 66, IP 67.

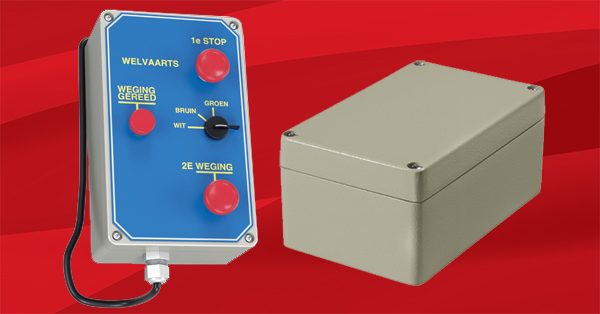

ALUKOM COST-EFFECTIVE ALUMINIUM ENCLOSURES
This practical and economic series of aluminium enclosures is suitable for a very wide range of electronics and electrical control equipment. The range consists of 24 industry-standard sizes. The metal fixings are made from corrosion-proof stainless steel. Screw bosses are provided inside for mounting the equipment.
Main features:
- Classic standard terminal enclosures
- Attractive price point
- Highly versatile enclosures
- Wide range of standard sizes – easy to exchange
- IP 66.

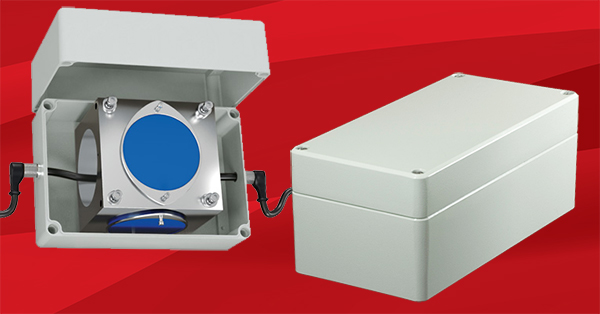

ALUNORM MULTIVARIABLE ALUMINIUM ELECTRONIC ENCLOSURES
Tough and dependable aluNORM is one of our largest ranges of IP-rated diecast electronic enclosures. They are designed to house and safeguard automation and machine control electronics in harsh and challenging environments.
Main features:
- Versatile universal design
- Space-saving single channel for lid fixings and mounting screws
- Various enclosure combinations available (standard, dual, flat, high)
- Proven design
- IP 66, IP 67, NEMA 4.

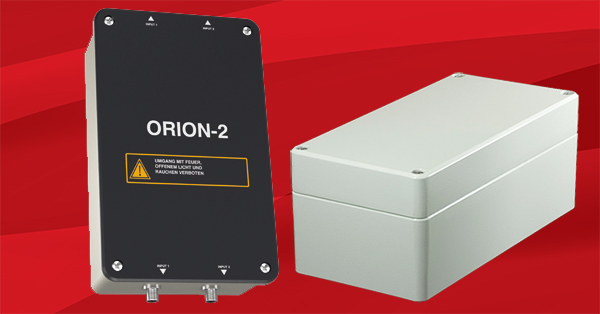

CONFORM DIECAST ENCLOSURES WITH BUILT-IN EMC SHIELDING
These tough diecast aluminium enclosures are designed for heavy-duty industrial applications where EMC shielding is critical. They are ideal for electronics requiring regular maintenance: the lid can be removed and replaced without having to worry about damaging a conductive gasket.
Main features:
- Economic and robust EMC-shielded enclosures in 14 sizes
- Integrated tooth system in the lid and base forms the shielding
- No need for a fragile and costly EMC gasket
- IP 66, IP 67, NEMA 4.

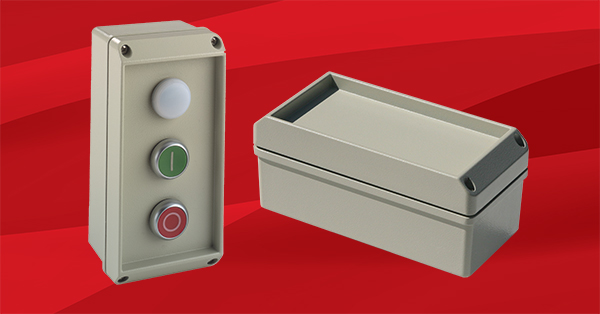

CONTROL ENCLOSURES WITH EMC SHIELDING AND BUTTON PROTECTION
These robust recessed-lid aluminium enclosures are suitable for a wide range of electronics and electrical control equipment. Four standard sizes are available. Small ribs in the base are compressed by the lid, ensuring excellent EMC contact throughout.
Main features:
- Deeply recessed lid protects control buttons
- No need for a fragile and costly EMC gasket
- Ideal for all types of industrial control equipment
- IP 66, IP 67, NEMA 4.
GET EXPERT TECHNICAL ADVICE
Contact ROLEC’s engineers for specialist technical advice on standard and customised aluminium enclosures for industrial electronics.
