WHEN YOUR INDUSTRIAL CONTROL ELECTRONICS NEED TOUGHER ENCLOSURES…
COMMAND ENCLOSURES: DIECAST VS PROFILE-BASED HOUSINGS
Our robust multiPANEL and profiPANEL HMI enclosures are very popular. Their elegant aesthetics, choice of variants and easy customisation have been a big hit. But what if you need something even tougher? It’s time to look at models such as commandCASE and aluFACE…
Unlike multiPANEL and profiPANEL – which are manufactured from aluminium profiles – commandCASE and aluFACE are diecast aluminium. This makes them more resistant to impact. It also gives them better ingress protection…

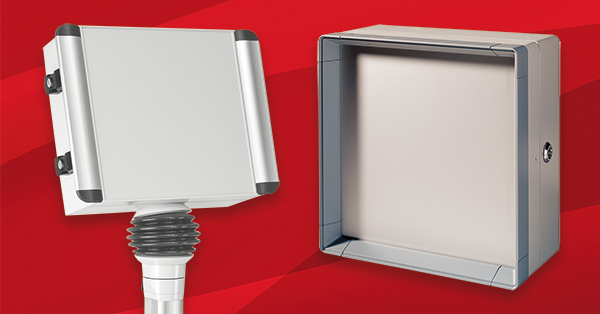

COMMANDCASE (IP 66): MODERN OPERATING AND CONTROL ENCLOSURES

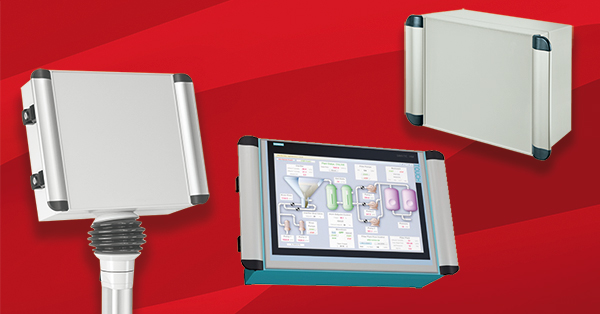

Rugged commandCASE is ideal for mounting on suspension arms in challenging environments. Its diecast aluminium casing can withstand hard knocks – and the IP 66 ingress protection provided by a polyurethane seal will safeguard your electronics from dust and temporary flooding. The IP 66 rating is based on a three-minute test: 100 litres of water per minute (100 kPa at a distance of three metres).
Ergonomic handles with curved corners make commandCASE easy and convenient to manoeuvre when it’s mounted on a support arm (such as profiPLUS 50 or taraSMART). These distinctive handles can be removed, should you wish to mount commandCASE directly to a wall or machine.
There are three standard versions of commandCASE – all of which have a recess in the cover to accommodate a membrane keypad, front plate or display panel:
- Version CC has a hinged lid and a quick-action closure that requires no internal space. This closure is available with a lock on request.
- Version CCS has a hinged lid, screw-fixed from the rear.
- Version CCV has a fixed lid, also screw-fixed from the rear. Supports hold the lid in place when it is open.
At the rear, the screw channels are fitted with cover caps which also serve as edge protection. Inside, there are threaded screw bosses for mounting assemblies and other components. The enclosures are powder coated in light grey (RAL 7035) as standard; custom colours are also available. Choose from six sizes (200 x 230 x 120 mm to 300 x 430 x 120 mm ). Mounting plates are available as accessories.

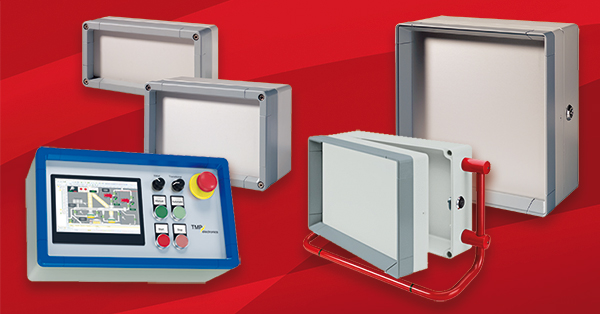

ALUFACE (IP 65, IP 66): PRACTICAL AND VERSATILE OPERATING AND CONTROL ENCLOSURES
Versatile and cost-effective aluFACE is at home in a range of industrial settings. It can be secured to a wall, bolted to a machine – or larger sizes can be mounted on a suspension arm. The large number of aluFACE variants and sizes makes it simple to specify the right enclosure without the need for much customisation.
Choose from a whole host of variants with diecast aluminium base sections and either diecast or extruded frame lids:
- KSE – with a raised framework and a two-piece lid with hidden fixings. The deep lid recess can protect larger buttons or other controls.
- KCE – with a flat framework and a two-piece recessed lid.
- KE – with a flat, single-piece aluminium frame.
- KTE – protects connection technology in a separate chamber that can be opened independently.
- KVE – flat framework, two-piece lid.
- KVF – flat framework, flat bottom section.
Together, these six versions create 65 different permutations. Sizes range from 120 x 120 x 80 mm (a KVF) to 320 x 640 x 153.3 mm (a KSE). All this makes it much easier to specify exactly the right enclosure for your electronics – saving space (and therefore budget).
SPECIFY CUSTOMISED COMMAND ENCLOSURES
All ROLEC enclosures can be specified fully customised so they can go directly from your Goods In to your production line, ready for the installation of your electronics. Customisation services include:
- CNC machining – milling and drilling
- engraving
- powder coating and wet painting (custom colours)
- digital and screen printing of legends, logos and graphics
- EMC shielding
- displays
- assembly and installation of accessories – cable glands (brass, polyamide, cable pull protection), compression elements, terminal blocks, mounting plates, cross rails and DIN rails.

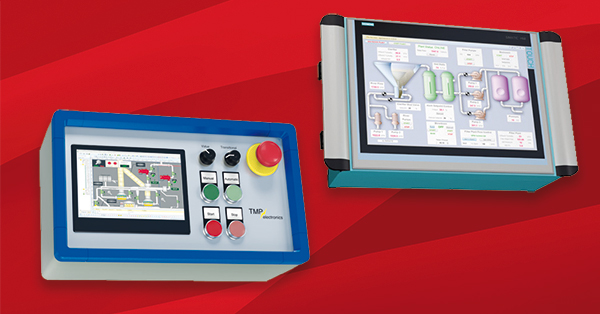

Quite often, less is more when it comes to customisation. Yes, we can powder coat or paint the entire enclosure in any colour you like (based on RAL, Pantone or match-to-sample specifications). But specifying colour highlights for just one part of the enclosure – such as the lid framework on aluFACE – can look very striking; it’s a smart and subtle way to add branding.
GET EXPERT TECHNICAL ADVICE
Need specialist advice about sealed enclosures for machine building, controllers and other industrial electronics? Get in touch with our expert team. Ask us about customisation – and don’t forget to request a sample so you can experience the quality, ergonomics and aesthetics of ROLEC enclosures.
